A vapor barrier is a polyethylene sheeting system installed on the ground and walls of a crawl space or basement to block ground moisture from migrating into the structural environment above. Understanding what a proper vapor barrier consists of, however, goes well beyond simply laying plastic on the floor.
A mil is one-thousandth of an inch, and the difference between a 6-mil sheet and a 20-mil sheet is significant in terms of puncture resistance, lifespan, and moisture vapor transmission rate. For most homes in Hamburg, MI, we recommend a minimum 10-mil product for general installation and a 20-mil product for spaces with high moisture loads or frequent access requirements.
Overlapping sheets by 12 inches or more at seams and securing them with butyl tape creates a continuous, mechanically bonded membrane that resists separation as the sheeting settles and moves over time. We use butyl tape exclusively for seam sealing, both because of its long-term adhesion to polyethylene and its resistance to moisture and temperature cycling.
Covering only the floor and stopping the barrier at the wall-floor junction leaves the porous block or concrete foundation walls as an open pathway for moisture to enter the crawl space environment. The combination of floor coverage, properly lapped and taped seams, and full wall coverage to the sill plate creates a complete moisture envelope that dramatically reduces crawl space humidity and protects the wood framing above.
High crawl space humidity leads to wood rot in floor joists and sill plates, a process that progresses silently over years before structural symptoms appear. If the barrier is incomplete or poorly sealed, a dehumidifier simply works harder against an unlimited moisture supply, running continuously and consuming excessive energy without achieving target humidity levels.
Every installation meets or exceeds Hamburg, MI building standards.
We source reinforced 20-mil poly sheeting and commercial butyl tape, not the hardware store equivalent.
We extend the barrier up every wall to the sill plate, closing the moisture entry pathway that floor-only installations miss.
You receive documentation of your warranty before we leave the property.
We install reinforced polyethylene sheeting across the entire crawl space floor with full wall coverage and butyl-taped seams throughout.
Upgrading from 6-mil to 20-mil sheeting with proper seam sealing delivers measurably improved moisture performance in most cases.
Basement floors in Hamburg, MI homes, particularly older poured concrete slabs, allow moisture vapor migration from the soil below year-round.

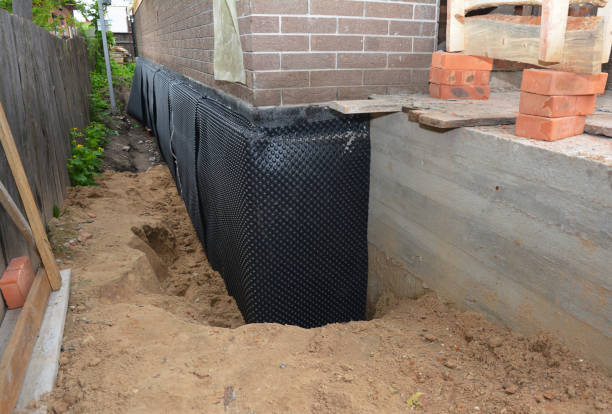

In basements with both vapor migration and liquid water management needs, we integrate dimple mat drainage board beneath the vapor barrier to channel any liquid water to a perimeter drain system.
Adding a properly sized dehumidifier completes the moisture management system and ensures consistent relative humidity control regardless of outdoor conditions.
We offer post-installation inspections for vapor barriers installed by other contractors, as well as for our own older installations, to assess barrier condition, seam integrity, and wall coverage completeness.
We measure the space, assess existing moisture conditions, document any existing barrier or mold, and identify all penetrations that will need to be addressed in the installation
Based on site conditions, we specify the appropriate mil rating, calculate material quantities, and plan the seaming layout for maximum coverage and minimum waste
Sheeting is laid, overlapped at 12 inches minimum, taped with butyl tape at all seams, and extended up all walls with mechanical fastening at the top edge
We walk through the completed installation with you, confirm all seams and coverages are complete, and provide written warranty documentation before leaving
"We had a previous vapor barrier installation that was barely 6-mil and had separated seams throughout. The humidity in our crawl space was unacceptable and we were starting to see mold on the floor joists. JCB Waterproofing and Construction came in, took out the failing old barrier, and installed a proper system that actually works. The difference in our indoor air quality was noticeable within a week."
"Very professional team that explained the difference between the grades of vapor barrier sheeting before recommending anything. They went with 20-mil for our space and the installation looks perfect. We can already see the humidity meter reading dropping consistently."
"The crew extended the barrier all the way up the walls to the sill plate, which the contractor who did our original installation did not do. We had been missing that wall coverage and did not even know it. Great work from a team that clearly knows what they are doing."
Contact JCB Waterproofing and Construction for a free site evaluation and written estimate for vapor barrier installation in Hamburg
